Unicode, UTF-8 and ASCII

ASCII, Unicode and UTF-8 often get used as if they meant the same thing, but each one answers a different question. ASCII is an old set of 128 characters, numbered 0 to 127: English letters, digits, punctuation and control codes. Unicode is a much bigger list that gives a number, called a code point, to every character in every script, plus symbols and emoji. UTF-8 is the way most files store those numbers as bytes, using 1 to 4 bytes per character. Take the euro sign: Unicode numbers it U+20AC, UTF-8 stores it as the bytes E2 82 AC, and ASCII has no code for it at all. The first 128 Unicode characters match ASCII and take one byte each in UTF-8, so plain ASCII text is already valid UTF-8.

Key takeaways

	ASCII has 128 characters, numbered 0 to 127, and uses 7 bits.
	Unicode gives every character a code point such as U+0041 for A and U+20AC for the euro sign.
	UTF-8 stores each code point in 1 to 4 bytes, and the first 128 match ASCII exactly.
	The euro sign is E2 82 AC in UTF-8, and emoji take 4 bytes.
	Garbled text like é usually means UTF-8 was read as Windows-1252.

01001011 01000101 01011001binarytranslator.ai

See how any text is stored

Type or paste some text. For each character the tool shows its Unicode code point, its UTF-8 bytes and how many bytes it takes in UTF-8 and UTF-16.

What is ASCII

ASCII stands for American Standard Code for Information Interchange. It was published in 1963 and uses 7 bits, so it has 2⁷ = 128 codes. Codes 0 to 31 and 127 are control characters such as line feed (10) and tab (9). Codes 32 to 126 are the printable characters: space, punctuation, the digits 0 to 9 at 48 to 57, capital letters at 65 to 90 and lowercase letters at 97 to 122. The ASCII table lists all of them with their binary and hex values.

Computers store bytes of 8 bits, so 128 more codes were free. Many "extended ASCII" sets used codes 128 to 255 for accented letters and symbols, but each region picked different ones. Windows-1252 and ISO-8859-1 were common in Western Europe, while Cyrillic and Greek had their own sets. The same byte could mean different letters on different computers, which is the problem Unicode was created to fix.

What is Unicode

Unicode is a standard that gives each character one number, no matter the language, platform or program, as the Unicode Consortium's overview puts it. Those numbers are written as U+ followed by hex digits. Capital A is U+0041, the euro sign is U+20AC and the grinning face emoji is U+1F600. Code points run from U+0000 to U+10FFFF, room for 1,114,112 values. More than 150,000 of them are assigned today, covering scripts from Latin and Arabic to Chinese, plus math symbols and emoji, and new versions add more each year.

Unicode on its own doesn't say how to store a code point in memory or in a file. Think of it as a numbered catalog. To turn those numbers into bytes you need an encoding, a rule for writing each number as bytes. Unicode defines three: UTF-8, UTF-16 and UTF-32.

What is UTF-8

UTF-8 stores each code point in 1, 2, 3 or 4 bytes. Small numbers take fewer bytes, so English text stays compact while every other script still fits. The first bits of each byte say what role it plays, following the patterns in RFC 3629, the UTF-8 standard:

Code point range	Bytes	Bit pattern	Covers
U+0000 to U+007F	1	0xxxxxxx	ASCII
U+0080 to U+07FF	2	110xxxxx 10xxxxxx	accented Latin, Greek, Cyrillic, Arabic, Hebrew
U+0800 to U+FFFF	3	1110xxxx 10xxxxxx 10xxxxxx	most other scripts, including Chinese and Japanese, and the euro sign
U+10000 to U+10FFFF	4	11110xxx 10xxxxxx 10xxxxxx 10xxxxxx	emoji and rarer scripts

A byte that starts with 0 is a whole character on its own. A byte that starts with 110, 1110 or 11110 starts a character and says how many bytes follow. A byte that starts with 10 continues the character before it. That design means a program can jump into the middle of UTF-8 text and find where the next character starts right away, by skipping any bytes that begin with 10.

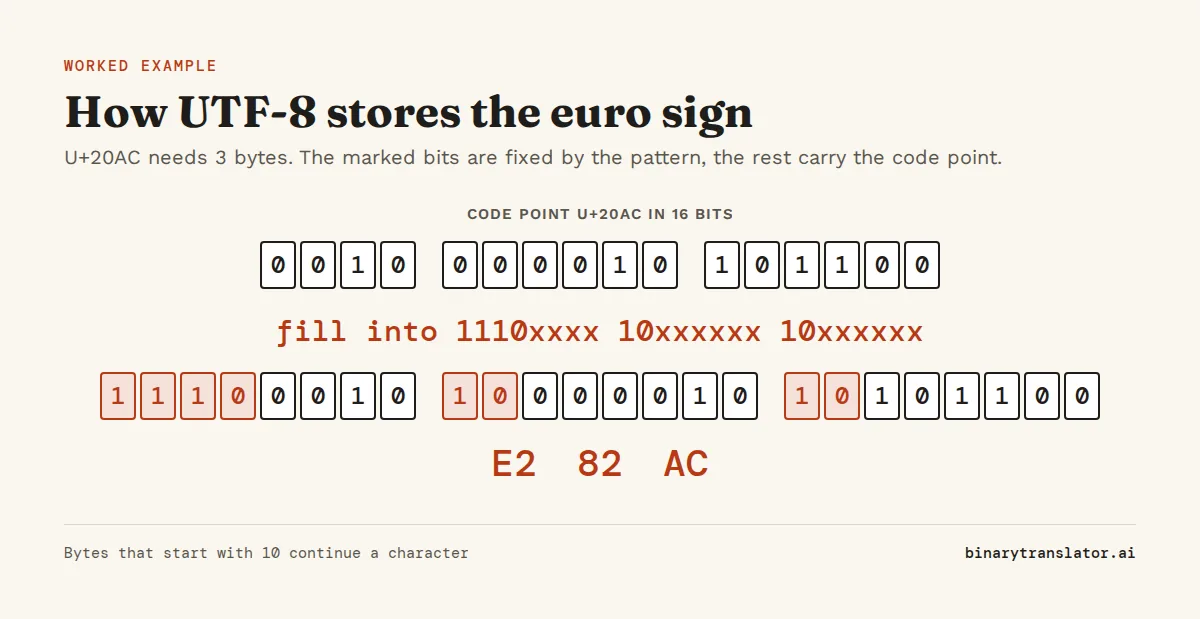

Worked example: encoding the euro sign

1. The euro sign is U+20AC. In binary that is 0010 0000 1010 1100, 16 bits.
2. U+20AC is between U+0800 and U+FFFF, so it needs 3 bytes with the pattern 1110xxxx 10xxxxxx 10xxxxxx.
3. Split the 16 bits into groups of 4, 6 and 6: 0010, 000010, 101100.
4. Fill them into the pattern: 11100010, 10000010, 10101100.
5. In hex that is E2 82 AC, the three bytes every UTF-8 file uses for €. Type € into the tool above and you should see the same three bytes.

ASCII vs Unicode vs UTF-8

	ASCII	Unicode	UTF-8
What it is	a character set	a character set	an encoding of Unicode
Number of characters	128	over 150,000 assigned	all of Unicode
Size per character	7 bits, usually stored in 1 byte	not defined, depends on the encoding	1 to 4 bytes
Letter A	65	U+0041	41
Euro sign	not included	U+20AC	E2 82 AC

If you're choosing between ASCII and UTF-8, use UTF-8. It reads every ASCII file correctly, because the first 128 codes are identical, and it can also store any other character. Nearly every web page and most modern file formats use it.

UTF-8 vs UTF-16 vs UTF-32

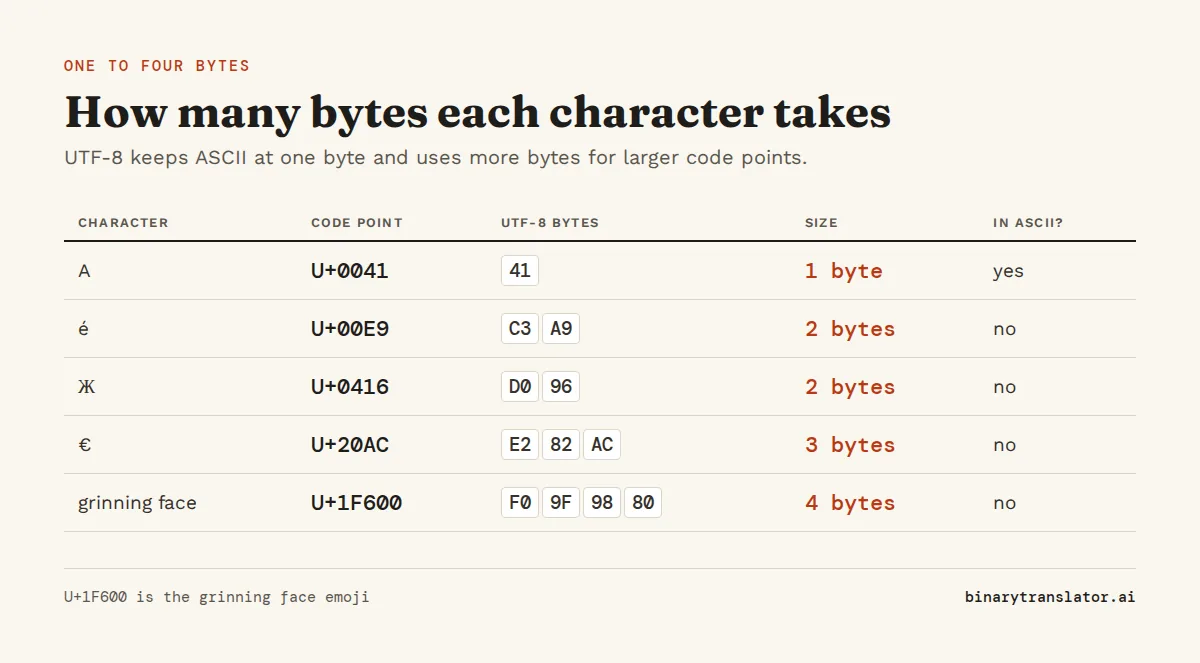

UTF-16 stores most characters in 2 bytes. Characters above U+FFFF, including emoji, take 4 bytes, written as a pair of 16-bit units called a surrogate pair. Windows, Java and JavaScript use UTF-16 for strings inside the program. UTF-32 stores every character in exactly 4 bytes. That makes it simple to index, but English text takes four times the space it would in UTF-8. The table shows the same five characters in UTF-8 and UTF-16:

Character	Code point	UTF-8 bytes	UTF-8 size	UTF-16 (big endian)	In ASCII?
A (Latin capital A)	U+0041	41	1	00 41	yes
é (e with acute accent)	U+00E9	C3 A9	2	00 E9	no
Ж (Cyrillic capital Zhe)	U+0416	D0 96	2	04 16	no
€ (euro sign)	U+20AC	E2 82 AC	3	20 AC	no
😀 (grinning face emoji)	U+1F600	F0 9F 98 80	4	D8 3D DE 00	no

This explains a JavaScript result that surprises people: '😀'.length is 2, because the string length counts 16-bit units, not characters. In Python 3, len('é') is 1 but len('é'.encode('utf-8')) is 2, because a Python string and its bytes are separate types. UTF-16 and UTF-32 also come in big-endian and little-endian forms. That is why their files often start with a byte order mark (BOM), such as FE FF or FF FE, which tells the reader which byte comes first.

Why text turns into strange symbols

You open a file and "café" shows up as "café". That garbled text, sometimes called mojibake, appears when bytes written in one encoding are read as another. This case is UTF-8 read as Windows-1252. The letter é is stored in UTF-8 as the two bytes C3 A9. Windows-1252 reads each byte as its own character, C3 as à and A9 as ©. The fix is to open the file again with the encoding it was written in. Don't correct the letters by hand, because the bytes on disk are fine and only the reading is wrong.

If a file starts with a stray "", you're looking at the UTF-8 byte order mark, EF BB BF, read as Windows-1252. When you're not sure which encoding you have, look at the actual bytes with the text to hex converter or the text to binary converter.

Which encoding to use

• Web pages, APIs, JSON, source code and new files: UTF-8. HTML pages should say so with <meta charset="utf-8">.
• Old files from Windows programs: often Windows-1252 or another code page. Convert them to UTF-8 once and keep them that way.
• Programs that talk to Windows APIs, Java or JavaScript internals: UTF-16 in memory, but UTF-8 when the data is saved or sent.

The Unicode converter turns text into code points, UTF-8, UTF-16 and escape codes for HTML, CSS, JavaScript and Python, and the binary translator decodes UTF-8 binary back into text.

Questions people ask

What is the difference between Unicode and UTF-8?

Unicode assigns a number to each character. UTF-8 is one way to store those numbers as bytes, using 1 to 4 bytes per character.

Is ASCII the same as UTF-8?

For the first 128 characters, yes. Any ASCII text is valid UTF-8 with the same bytes. UTF-8 then goes much further, while ASCII stops at code 127.

How many characters does ASCII have?

128, numbered 0 to 127. 95 of them are printable and 33 are control codes.

How many bytes is a UTF-8 character?

Between 1 and 4. ASCII characters take 1 byte, most European and Middle Eastern letters take 2, Chinese, Japanese and Korean characters take 3, and emoji take 4.

Why does my text show é instead of é?

The text was saved as UTF-8 and opened as Windows-1252 or ISO-8859-1. Open it again with UTF-8 selected as the encoding.

Is UTF-8 better than UTF-16?

For files and anything sent over a network, UTF-8 is the usual choice because it is compatible with ASCII and has no byte order problems. UTF-16 is common inside Windows, Java and JavaScript programs.
